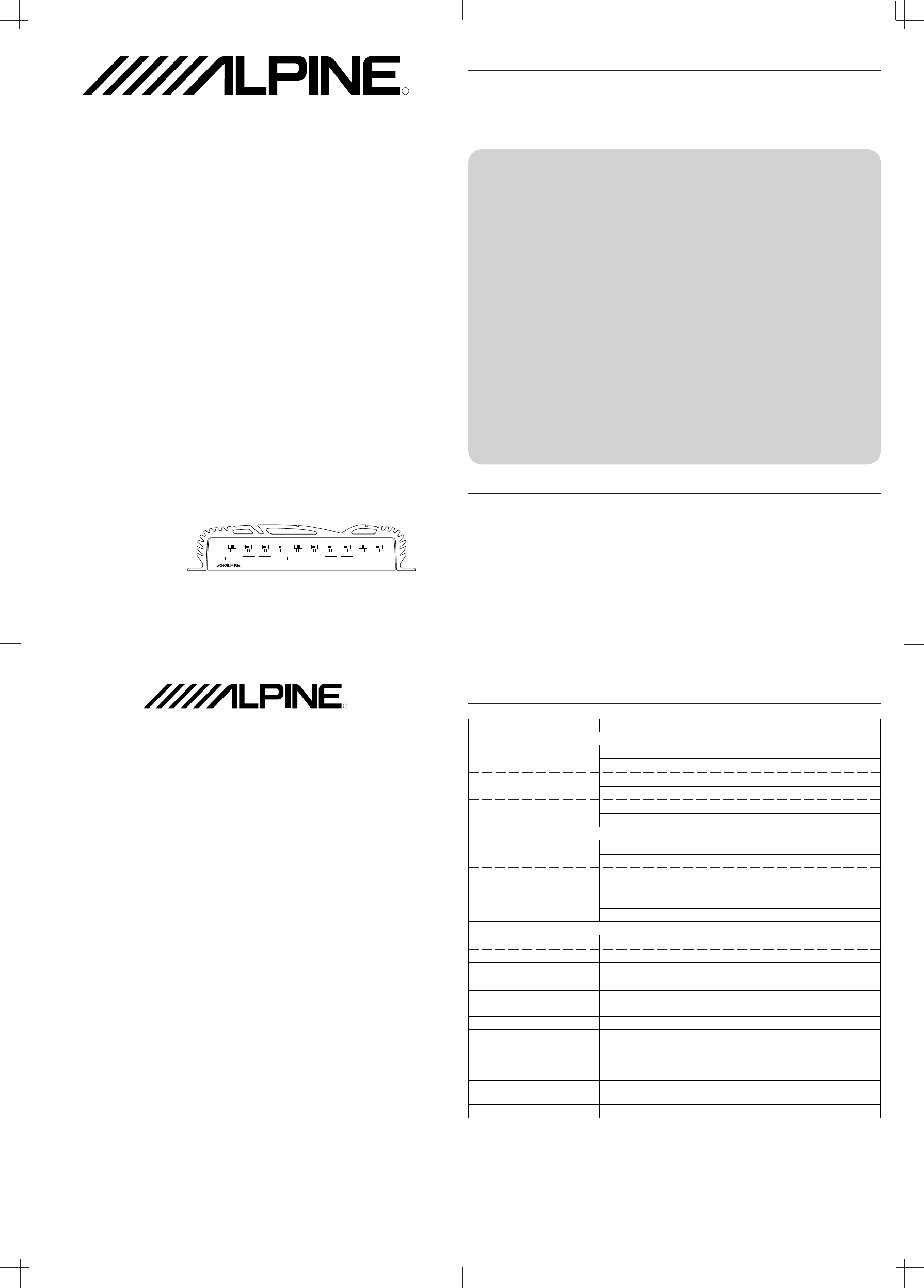

Mode d’emploi

ENGLISH

Please read this OWNER'S MANUAL thoroughly to familiarize yourself with each control and function. We at

ALPINE hope that your new MRV-F505/MRV-F405/MRV-F305 will give you many years of listening enjoyment.

In case of problems when installing your MRV-F505/MRV-F405/MRV-F305, please contact your authorized

ALPINE dealer.

CAUTION: These controls are for tuning your system. Please consult your authorized Dealer for adjust-

ment.

FROM MRV-F505/405/305 AO, 29/11/96

R

PRECAUTIONS

• Perform the installation at a location that is level. Make sure the parking brake is on and the

ignition is OFF.

• Always disconnect the cable from the (–) negative pole of the battery before connecting or

disconnecting the MRV-F505/MRV-F405/MRV-F305. This will prevent the possibility of short

circuits.

• When replacing a blown fuse make sure to replace it with one of the same value.

• Be sure to connect the color coded leads according to the diagram. Incorrect connections may

cause the unit to malfunction or damage to the vehicle's electrical system.

• Be sure to connect the speaker (–) leads to the speaker (–) terminal. Never connect left and right

channel speaker cables to each other or to the vehicle body.

• This unit is designed for 12 VDC, negative ground systems. Make sure that your vehicle has this

type of electrical system before connecting the power cable.

• When making connections to the car's electrical system, be aware of the factory installed

components (e.g. on-board computer). Do not tap into these leads to provide power for this unit.

When connecting the MRV-F505/MRV-F405/MRV-F305 to the fuse box, make sure the fuse for the

intended circuit of the MRV-F505/MRV-F405/MRV-F305 has the appropriate amperage. Failure to

do so may result in damage to the unit and/or the vehicle. When in doubt, consult your ALPINE

dealer.

• The MRV-F505/MRV-F405/MRV-F305 uses female RCA-type jacks for connection to other units

(e.g. amplifier) having RCA connectors. You may need an adaptor to connect other units. If so,

please contact your authorized ALPINE dealer for assistance.

• Due to the high power output of the MRV-F505/MRV-F405/MRV-F305, it is important that all

connections are clean and well secured, or damage could result.

• When installation and connections are completed, check the followings: a) Connections are

proper. b) Operation of brake lamps, horn etc. are proper with the ignition ON. c) Operation of

audio units is proper with the switch ON.

SERVICE CARE

◆ For European Customers

Should you have any questions about warranty,

please consult your store of purchase.

◆ For Customers in other Countries

IMPORTANT NOTICE

Customers who purchase the product with which

this notice is packaged, and who make this

purchase in countries other than the United

States of America and Canada, please contact

your dealer for information regarding warranty

coverage.

SPECIFICATIONS

Dimensions (W x H x D)

MRV-F505..................................................................... 240mm x 53mm x 400mm (9-7/16" x 2-1/16" x 15-3/4")

MRV-F405........................................................................... 240mm x 53mm x 330mm (9-7/16" x 2-1/16" x 13")

MRV-F305..................................................................... 240mm x 53mm x 270mm (9-7/16" x 2-1/16" x 10-5/8")

Weight

MRV-F505.............................................................................................................................4.5 kg (9 lbs. 14 oz)

MRV-F405.............................................................................................................................3.5 kg (7 lbs. 11 oz)

MRV-F305...............................................................................................................................3.0 kg (6 lbs. 9 oz)

NOTE:

For product improvement, specifications and design are subject to change without notice.

MRV-F505 MRV-F405 MRV-F305

Power Output: RMS Continuous Power (at 12.0V, 20 Hz to 20 kHz)

Per channel into 4 ohms

50W 40W 30W

0.04% THD

Per channel into 2 ohms

65W 50W 40W

0.3% THD

Bridged into 4 ohms

130W 100W 80W

0.3% THD

Power Output: RMS Continuous Power (at 14.4V, 20 Hz to 20 kHz)

Per channel into 4 ohms

75W 60W 50W

0.04% THD

Per channel into 2 ohms

100W 80W 60W

0.3% THD

Bridged into 4 ohms

200W 160W 120W

0.3% THD

EIAJ Max. Power (at 14.4V)

Per channel into 4 ohms 160W 130W 100W

Bridged into 4 ohms 400W 320W 240W

Frequency Response

10 Hz to 50 kHz

(+0, –1 dB)

Signal-to-Noise Ratio

105 dBA

(referenced to rated power)

Slew factor Greater than 5

Input Sensitivity (for rated

power output)

200mV to 4.0V (1.0V at center detent)

Input Impedance 10k ohms <

Speaker Impedance 4 or 2 ohms (Stereo), 4 ohms (Bridged)

Active Dividing Network

Frequency and Slope

50 to 400 Hz (x1), 1k to 8 kHz (x20)

12 dB per octave

Power Requirement 11 – 16VDC Negative Ground

R

ALPINE ELECTRONICS, INC.

Tokyo office: 1-1-8 Nishi Gotanda,

Shinagawa-ku, Tokyo 141, Japan

Tel.: (03) 3494-1101

ALPINE ELECTRONICS OF AMERICA, INC.

19145 Gramercy Place, Torrance,

California 90501, U.S.A.

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF CANADA, INC.

Suite 203, 7300 Warden Ave. Markham,

Ontario L3R 9Z6, Canada

Tel.: 1-800-ALPINE-1 (1-800-257-4631)

ALPINE ELECTRONICS OF AUSTRALIA PTY. LTD.

6-8 Fiveways Boulevarde Keysborough,

Victoria 3173, Australia

Tel.: (03) 9769-0000

ALPINE ELECTRONICS GmbH

Brandenburger Strasse 2-6 D-40880 Ratingen,

Germany

Tel.: 02102-45 50

ALPINE ITALIA S.p.A.

Via C. Colombo 8, 20090 Trezzano Sul

Naviglio MI, Italy

Tel.: 02-48 40 16 24

ALPINE ELECTRONICS FRANCE S.A.R.L.

(RCS PONTOISE B 338 101 280)

98, Rue De La Belle Etoile, Z.I. Paris Nord II

B.P. 50016 F-95945, Roissy,

Charles de Gaulle Cedex, France

Tel.: 01-48 63 89 89

ALPINE ELECTRONICS OF U. K., LTD.

13 Tanners Drive, Blakelands,

Milton Keynes MK14 5BU, U.K.

Tel.: 01908-61 15 56

ALPINE ELECTRONICS DE ESPAÑA, S.A.

Portal De Gamarra 36, Pabellón 32

01013 Vitoria (Alava) - Apdo. 133, Spain

Tel.: 34-45-283588

Designed by ALPINE Japan

Sankei Kikaku Co., Ltd.

1-13-38, Hinodai,

Hino, Tokyo, Japan

4/3/2 Channel Power Amplifier

• OWNER'S MANUAL

Please read this manual to maximize your

enjoyment of the outstanding performance and

feature capabilities of the equipment, then retain

the manual for future reference.

• MODE D'EMPLOI

Veuillez lire ce mode d'emploi pour tirer

pleinement profit des excellentes performances et

fonctions de cet appareil, et conservez-le pour

toute référence future.

• MANUAL DE OPERACION

Lea este manual, por favor, para disfrutar al

máximo de las excepcionales prestaciones y

posibilidades funcionales que ofrece el equipo,

luego guarde el manual para usarlo como

referencia en el futuro.

1 ST 1+2 3 ST 3+4 1/2 3/4 1+3/2+4OFF ON

X

1

X

20 OFF ON OFF ON OFF ON NOM 4V

X

1

X

20

LP

INPUT MODE

CHANNEL-1/2

HP INPUT MODE LP HP

CHANNEL-3/4

INPUT CHANNEL INPUT LEVEL

4/3/2 CHANNEL POWER AMPLIFIER

MRV - F505

(MRV-F505)

MRV-F505/MRV-F405/

MRV-F305

68P90664W92-C

Printed in Japan (S)
