Fixing

The appliance must be installed on a perfectly level

supporting surface.

Any deformities caused by improper fixing could

affect the features and operation of the hob.

The thickness of the supporting surface

should be

taken into account when choosing

the length of the

screws for the fixing hooks:

• 30 mm thick: 17.5 mm screws

• 40 mm thick: 7.5 mm screws

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4

alignment springs in the holes provided at the

central point of each side of the hob.

2. Place the hob in the cavity, make sure it is in a

central position and push down on the whole

perimeter until the hob is stuck to the supporting

surface.

3. For hobs with raised sides: After inserting the hob

into its cavity, insert the 4 fixing hooks (each has its

own pin) into the lower edges of the hob, using the

long pointed screws to fix them in place, until the

glass is stuck to the supporting surface.

! The screws for the alignment springs must remain

accessible.

! In order to adhere to safety standards, the

appliance must not come into contact with electrical

parts once it has been installed.

! All parts which ensure the safe operation of the

appliance must not be removable without the aid of

a tool.

Electrical connection

! The electrical connection for the hob and for any

built-in oven must be carried out separately, both for

safety purposes and to make extracting the oven

easier.

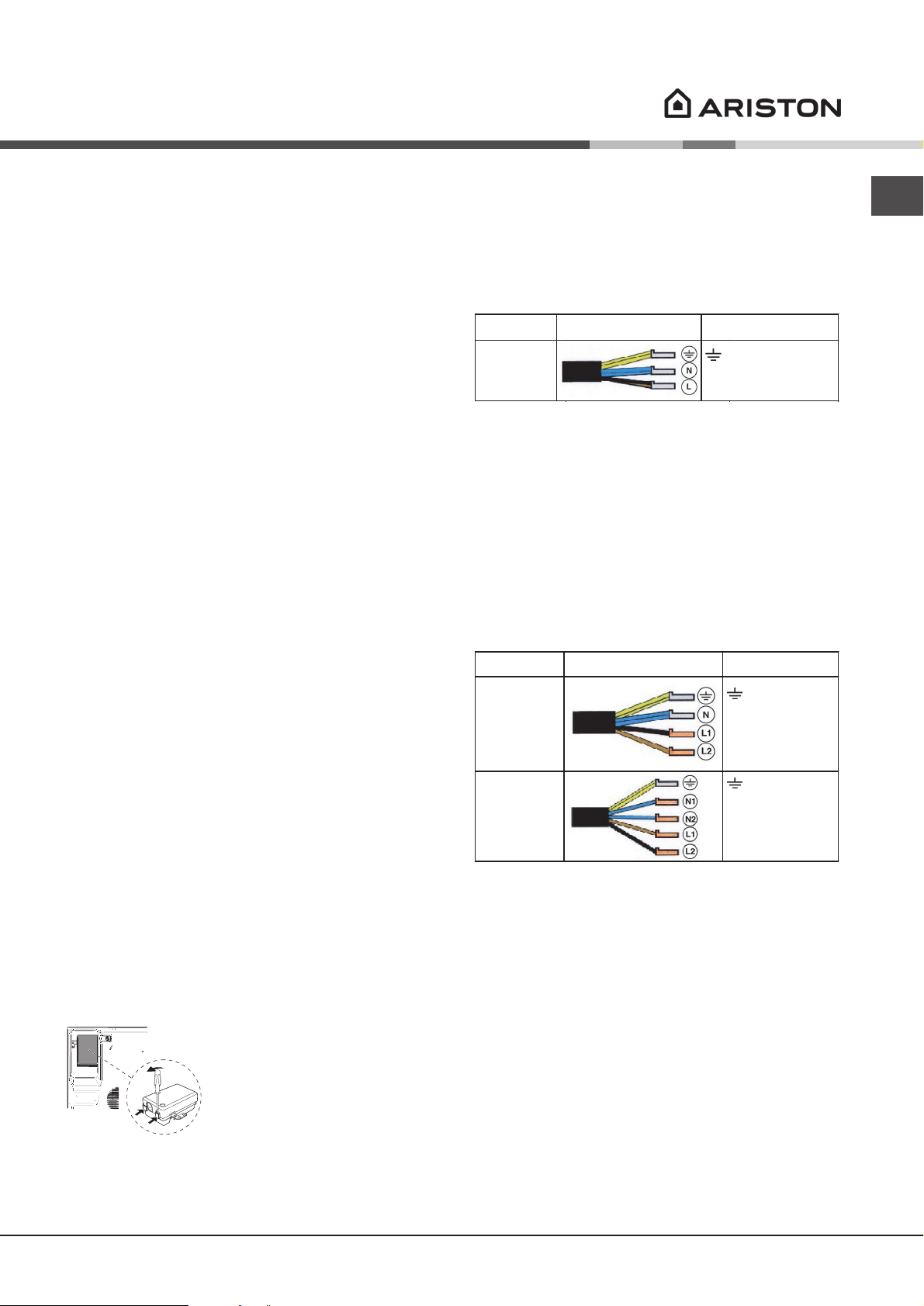

Terminal board

On the lower part of the

appliance there is a

connection box for the

different types of electricity

supply (the picture is only an

indication and is not an exact

representation of the

purchased model).

Single-phase connection

The hob is equipped with a pre-connected electricity

supply cable, which is designed for single-phase

connection. Connect the wires in accordance with

the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

230-240V 1+N ~

220-240V 1+N ~

50/60 Hz

: yellow/green

N

: the two blue wires together

L

: brown and black together

Other types of connection

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

• 400V - 2+N ~ 50/60 Hz

• 220-240V 3 ~ 50/60 Hz

• 230-240V 3 ~ 50/60 Hz

• 400V - 2+2N ~ 50/60 Hz

Separate the wires and connect them in accordance

with the instructions given in the following table and

diagrams:

Voltage and

mains frequency

Electrical cable Wire connection

400V - 2+N ~

50/60 Hz

230-240V 3 ~

220-240V 3 ~

50/60 Hz

: yellow/green;

N: the two blue wires

together

L1: black

L2: brown

400V - 2+2N ~

50/60 Hz

: yellow/green;

N1: blue

N2: blue

L1: black

L2: brown

If the mains supply corresponds with one of the

following:

Voltage and mains frequency

• 400V 3 - N ~ 50/60 Hz

proceed as follows:

! The cable provided is not suitable for the following

types of installation.

1. Use a suitable supply cable, H05RR-F or higher,

with the right dimensions (cable cross section: 25

mm).

2. To open the terminal board, use a screwdriver as

a lever under the side tabs of the cover (

see

Terminal board picture

).

3. Loosen the cable clamp screw and the terminal

board screws in accordance with the type of

UNDERSIDE OF HOB
