NOTE:

You must use 4 ohms impedance of speaker in your speaker system to reduce the distortion

during high volume level.

INSTALLATION

1. Choose the mounting location that will not interfere the normal driving function of the driver.

2.Avoid installing the unit in a place where it would be subjected to dirt, dust, damp, high

temperature and excessive vibration.

3. Please install appendixes provided by the manufacturer.

PRECAUTIONS AND MAINTENANCE

1.This unit is designed for negative ground operation only.The equipment can be used safely,

if the negative terminal of the battery is connected to the vehicle metal work.

2.Do not use speakers of impedance less than 4 ohms; and allow the speaker wires to be

shorted together when the unit is switched on. Otherwise it may overload or burn out

the power amplifier stage.

3.If the car interior is extremely hot, as after being parked in the sun, do not use the player

until the car has been driven for a while to cool off the interior.

4.Ta ke care of your tape cassette to preserve the quality of the recordings. Do not expose

them to direct sunlight. Store them in a place protected from dirt and dust and

avoid handing with greasy or oily hands.Also, keep the away from magnets, and

motors of the permanent magnet type.

5.It is not advisable to use cassette tapes longer than C-60(30 minutes per side) in

automobile players, since the tape is too thin and tends to become easily entangled.

Always remove cartridge from your tape player as soon as play is finished.

6.The capstan and tape head should be cleaned about once every six months with a soft cloth or cot-

ton-wool swab, moistened with alcohol.

This will serve to maintain the richness and clarity of sound, and prevent loss of volume. Do not use a

screwdriver, or ferrous metal rod, in carrying out the above cleaning. See illustration.

7.A loosely wound cassette tape will get damaged. Prior to using such tape, tighten it in a manner as

guided by Fig2.A carelessly wound cassette tape will cause unnecessary pressure on the tape resul-

ting in the cassette springing out while the tape is running. For prevention, rewind the tape through

fast forwarding or rewinding.

GB 4

USER MANUAL

2).Temporary switch over to an EON linked station when EON detects a traffic announcement

on the other program.

3).If the volume level was under the threshold point, it will be raised to the threshold point. If

the volume level was set to more than the threshold point (min.TA volume level), it will be set

to the last level.

When pressed long,TA SEEK mode on or off, and TPST ON/OFF will be displayed on LCD.

When the newly tuned station does not receive TP information for 5 seconds, the radio retunes

to the next station which has not got the same station(PI) as the last station, but does have the

TP information.

In TA seek mode, the current station can be changed to a completely different station because

the unit searches TP station when the field strength of the current station is very weak, or when

the current station has no TP signal.

15.TUNE UP OR DOWN BUTTONS

In RADIO mode, press ^ or v button shortly and repeatedly to manually tune up or down for

the desired radio station. Press ^ or v button for more than 2 seconds to automatically tune up or

down for the radio station of a strong signal.

16.EJECT KEY

At TAPE mode, push this key to stop tape playing and eject the tape from the cassette compartment.

17.CASSETTE COMPARTMENT

18. MUTE

19. STEREO/MONO

SPECIFICATIONS

Power Supply Main Unit DC 13.8 Volts. Negative Ground

Current consumption 10A MAX

Maximum Output Power 35W X 4

Unit Dimensions 178(W) x 150(D) x 50(H)

FM SECTION

Frequency Range 87.5MHz - 108MHz

CAUTION: Do not install the detachable panel before connecting the unit.

1.The unit is designed for negative terminal of the battery which is connected to the vehicle

metal. Please make sure this is connected before starting installation.

2. If the car interior is extremely hot, as after being parked in the sun, do not use the player until

the car has been driven for a while to cool off the interior.

GB 3

USER MANUAL

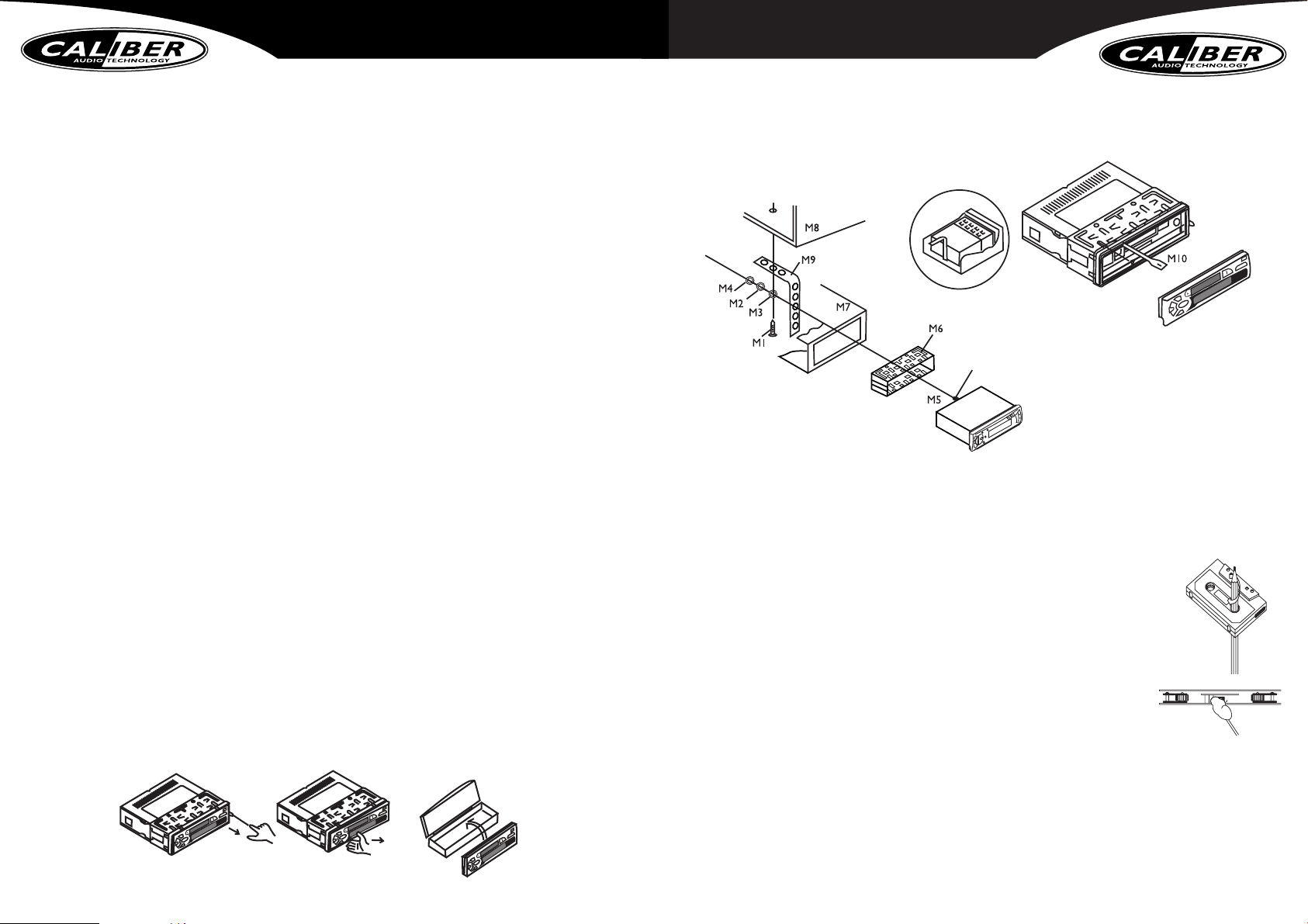

REL

M1.TAPPING SCREW

M2. PLAIN WASHER

M3. SPRING WASHER

M4. HEX NUT

M5. HEX BOLT

M6. SLIDE BRACKET HOUSING

M7. CONSOLE

M8. DASH BOARD

M9. METAL MOUNTING STRAP

M10. KEY PLATE

2.

MCC_110manualOUTLINES 18-03-2005 11:47 Pagina 3
