5

COOKTOP MAINTENANCE AND

CARE

General Cleaning

IMPORTANT: Before cleaning, make sure all controls are off and

the cooktop is cool.

You can use soap, water and a soft cloth or sponge.

To avoid damaging the cooktop, do not use steel wool, abrasive

powder cleansers, chlorine bleach, rust remover or ammonia. Do

not use a steam cleaner.

For best results, turn on Key Lock to prevent the control panel

from turning on while cleaning.

CERAMIC GLASS

You can also use a cooktop scraper. Proceed as follows:

1. Hold the cooktop scraper at approximately a 45° angle against

the glass surface and scrape the residue. It will be necessary

to apply pressure in order to remove the residue.

2. Apply a few drops of soap and water to the affected areas.

3. Polish with a clean and dry cloth

Repeat steps 1 through 3 as necessary for stubborn or burned-on

stains

STAINLESS STEEL (on some models)

NOTE: To avoid damage to stainless steel surfaces, do not use

soap filled scouring pads, abrasive cleaners, steelwool pads, gritty

washcloths, or abrasive paper towels.

Rub in the direction of the grain to avoid damaging.

Cleaning Method:

1. All purpose cleaner: Rinse with clean water and dry with soft,

lint-free cloth.

2. Vinegar for hard water spots.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

Tools Needed

� Tape measure

� Flat-blade screwdriver

� Phillips head screwdriver

� Hand or electric drill

� Level

� Marker or pencil

� Pliers

� 1/4" drill bit

� Jigsaw

Parts Supplied

� Brackets (2)

� #6 x 3/4" (1.9 cm) clamping screws (4)

� #8 x 3/8" (9.5 mm) sheet metal screws (7 screws for 24", 30"

and 36" models)

Parts needed

� A UL listed or CSA approved strain relief

� UL listed wire connectors

� A UL approved junction box or 240 V outlet

� Cooktop Bracket Adhesive Kit Part Number W11279478 if

installing the cooktop into a marble countertop. See the

“Assistance or Service” section of the Quick Start Guide for

information on ordering.

Check local codes. Check existing electrical supply. See

“Electrical Requirements”.

It is recommended that all electrical connections be made by a

licensed, qualified electrical installer.

Location Requirements

Make sure you have everything needed for correct installation. It

is the responsibility of the installer to comply with the installation

clearances specified in these instructions.

IMPORTANT: Observe all governing codes and ordinances.

When installing cooktop, use minimum dimensions given.

� To eliminate the risk of burns or fire by reaching over the

heated surface units, cabinet storage space located above the

surface units should be avoided. If cabinet storage is to be

provided, the risk can be reduced by installing a range hood

that projects horizontally a minimum of 5" (12.7 cm) beyond

the bottom of the cabinets.

� It is the installer’s responsibility to comply with installation

clearances specified on the model/serial/rating plate. The

model/serial/rating plate is located on the underside of the

cooktop burner box.

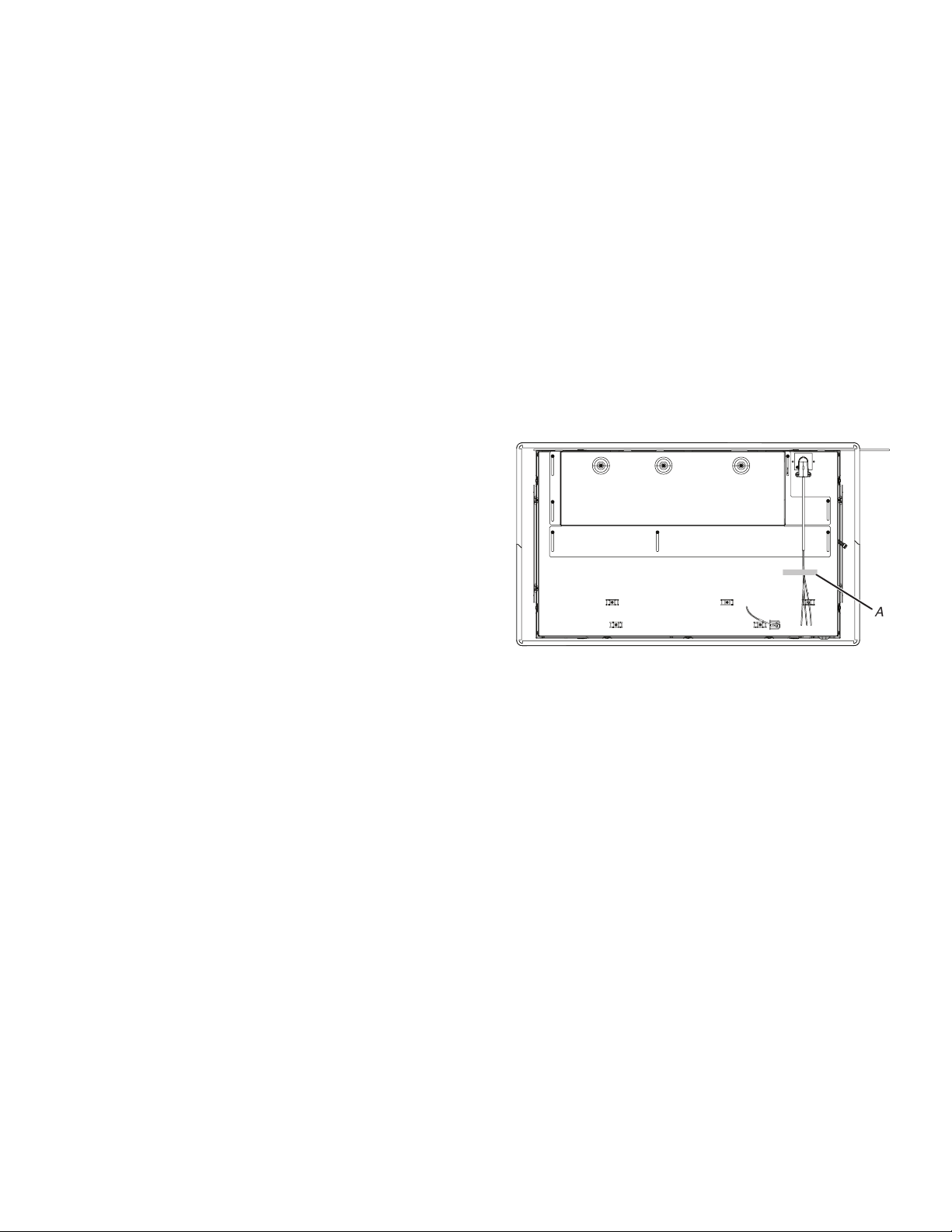

24”, 30", 36” cooktop model/serial rating plate location

A

A. Model/serial/rating plate

� Check the cooktop base for an approved installation label.

Verify approved oven model numbers that can be installed with

your cooktop model number. If you do not find this label, your

cooktop may not be approved for use over an undercounter

built-in oven. Contact your dealer to confirm that your cooktop

is approved.

� Ovens approved for this type of installation will have an

approval label located on the top of the oven. If you do not find

this label, contact your dealer to confirm that your oven is

approved. Refer to oven manufacturer’s Installation

Instructions for approval for built-in undercounter use and

proper cutout dimensions.

� When installing cooktop over an undercounter built-in oven, do

not fasten cooktop to countertop with clamps or seal cooktop

to countertop. This will make the cooktop easier to remove if

future servicing becomes necessary.

� Use the countertop opening dimensions that are given with

these Installation Instructions. Given dimensions are minimum

clearances and provide 0" (0 cm) clearance.

� Grounded electrical supply is required. See “Electrical

Requirements” section.
