4
5
occur. Investigate and take corrective action to
eliminate the cause of wheel binding.
• Do not restart the cutting operation in the
workpiece. Let the wheel reach full speed and
carefully re-enter the cut. The wheel may bind,
walk up or kickback if the power tool is restarted in
the workpiece."
• Support panels or any oversized workpiece to
minimize the risk of wheel pinching and kick-
back. Large workpieces tend to sag under their
own weight. Supports must be placed under the
workpiece near the line of cut and near the edge of
the workpiece on both sides of the wheel.
• Use extra caution when making a “pocket cut”
into existing walls or other blind areas. The pro-
truding wheel may cut gas or water pipes, electrical
wiring or objects that can cause kickback.
Safety Warnings Specic for Sanding Operations:
• Do not use excessively oversized sanding disc
paper. Follow manufacturers recommendations,
when selecting sanding paper. Larger sanding
paper extending beyond the sanding pad presents a
laceration hazard and may cause snagging, tearing
of the disc or kickback.
Safety Warnings Specific for Wire Brushing
Operations:
• Be aware that wire bristles are thrown by the
brush even during ordinary operation. Do not
overstress the wires by applying excessive load
to the brush. The wire bristles can easily penetrate
light clothing and/or skin.
• If the use of a guard is recommended for wire
brushing, do not allow any interference of the
wire wheel or brush with the guard. Wire wheel
or brush may expand in diameter due to work load
and centrifugal forces.
Additional Safety Warnings
• Maintain labels and nameplates. These carry
important information. If unreadable or missing,
contact a MILWAUKEE service facility for a free
replacement.
•
Some dust created by power sand-
ing, sawing, grinding, drilling, and
other construction activities contains chemicals
known to cause cancer, birth defects or other repro-
ductive harm. Some examples of these chemicals
are:
• lead from lead-based paint
• crystalline silica from bricks and cement and other
masonry products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending
on how often you do this type of work. To reduce
your exposure to these chemicals: work in a well
ventilated area, and work with approved safety
equipment, such as those dust masks that are spe-
cially designed to lter out microscopic particles.
SPECIFICATIONS
Cat. No. ..................................................... 2785-20
Volts .............................................................. 18 DC
Rated RPM .....................................................6 600
Spindle Thread Size .................................... 5/8"-11
Max Capacity ...........................................7"/9"x1/4"
Battery Type .................................................M18™
Charger Type ................................................M18™
Recommended Ambient
Operating Temperature ......................0°F to 125°F

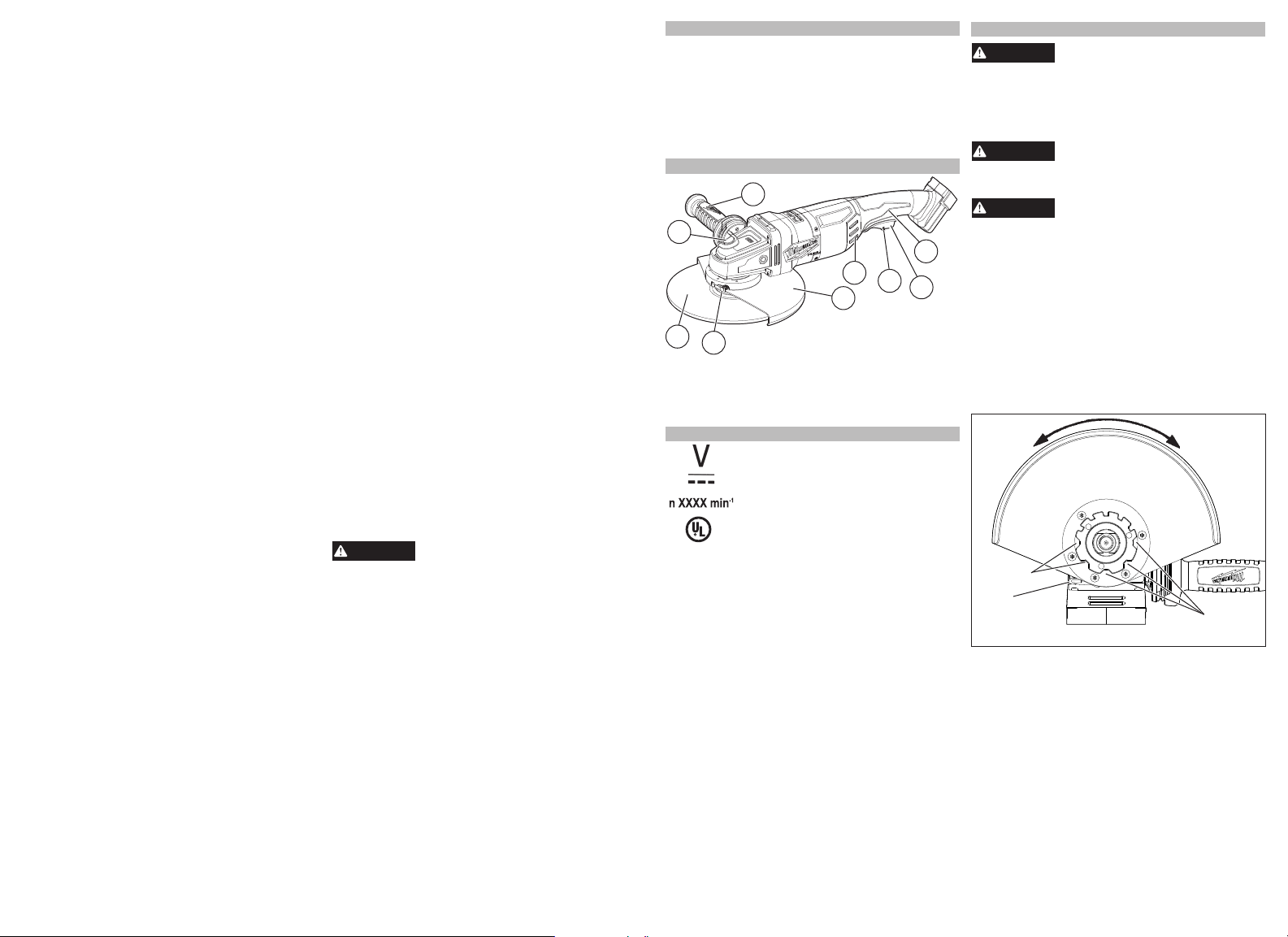

FUNCTIONAL DESCRIPTION
1. Spindle lock
2. Side handle
3. Handle
1
6
5
7
3
4. Switch
5. Switch lock-off
6. Dust screen
7. Guard
8. Guard lock lever
9. Accessory
2
9
8
4
SYMBOLOGY
Volts
Direct Current
Rated Revolutions per Minute (RPM)
UL Listing Mark for Canada and the U.S.
provided, for maximum control over kickback
or torque reaction during start-up. The operator
can control torque reactions or kickback forces, if
proper precautions are taken.
• Never place your hand near the rotating acces-
sory. Accessory may kickback over your hand.
• Do not position your body in the area where
power tool will move if kickback occurs. Kickback
will propel the tool in direction opposite to the wheel’s
movement at the point of snagging.
• Use special care when working corners, sharp
edges etc. Avoid bouncing and snagging the ac-
cessory. Corners, sharp edges or bouncing have a
tendency to snag the rotating accessory and cause
loss of control or kickback.
• Do not attach a saw chain woodcarving blade or
toothed saw blade. Such blades create frequent
kickback and loss of control.
Safety Warnings Specic for Grinding and Abra-
sive Cutting-Off Operations:
• Use only wheel types that are recommended for
your power tool and the specic guard designed
for the selected wheel. Wheels for which the
power tool was not designed cannot be adequately
guarded and are unsafe.
• The grinding surface of centre depressed wheels
must be mounted below the plane of the guard
lip. An improperly mounted wheel that projects
through the plane of the guard lip cannot be ad-
equately protected.
• The guard must be securely attached to the
power tool and positioned for maximum safety,
so the least amount of wheel is exposed towards
the operator. The guard helps to protect the opera-
tor from broken wheel fragments, accidental contact
with wheel and sparks that could ignite clothing.
• Wheels must be used only for recommended
applications. For example: do not grind with the
side of cut-off wheel. Abrasive cut-off wheels are
intended for peripheral grinding, side forces applied
to these wheels may cause them to shatter.
• Always use undamaged wheel anges that are of
correct size and shape for your selected wheel.
Proper wheel anges support the wheel thus reduc-
ing the possibility of wheel breakage. Flanges for
cut-off wheels may be different from grinding wheel
anges.
• Do not use worn down wheels from larger power
tools. Wheel intended for larger power tool is not
suitable for the higher speed of a smaller tool and
may burst.
Additional Safety Warnings Specic for Abrasive
Cutting-Off Operations:
• Do not “jam” the cut-off wheel or apply ex-
cessive pressure. Do not attempt to make an
excessive depth of cut. Overstressing the wheel
increases the loading and susceptibility to twisting
or binding of the wheel in the cut and the possibility
of kickback or wheel breakage.
• Do not position your body in line with and behind
the rotating wheel. When the wheel, at the point
of operation, is moving away from your body, the
possible kickback may propel the spinning wheel
and the power tool directly at you.
• When wheel is binding or when interrupting a
cut for any reason, switch off the power tool
and hold the power tool motionless until the
wheel comes to a complete stop. Never attempt
to remove the cut-off wheel from the cut while
the wheel is in motion otherwise kickback may
ASSEMBLY
Recharge only with the charger
specied for the battery. For spe-
cic charging instructions, read the operator’s
manual supplied with your charger and battery.
Removing/Inserting the Battery
To remove the battery, push in the release buttons
and pull the battery pack away from the tool.
Always remove battery pack before
changing or removing accessories.
To insert the battery, slide the pack into the body
of the tool. Make sure it latches securely into place.
Only use accessories specically
recommended for this tool. Others
may be hazardous.
To reduce the risk of injury when grinding, always
use properly installed guards.
This tool is shipped with a guard. The guard must be
used when using the tool as a grinder. When used
as a Sander, it must be removed.
Installing/Removing/Adjusting the Guard
1. To install the guard, remove battery pack and
place it upside down on a level surface. Remove
any accessories from the spindle. WARNING!
Always remove battery pack before changing or
removing accessories.
Line up the tabs with the tab slots. Then press the
guard down onto the tool.
Guard
adjustment
lock lever must
engage one of
the detents
Tab slot
Tab slot
Press in the guard adjustment lock lever and rotate
the guard to one of the detent slots. The lock lever
must engage with one of the detents.
2. To adjust the guard, press in the guard adjust-
ment lock lever and rotate the guard to one of
the detents. WARNING! Always adjust the guard
to provide the operator with maximum protection
while operating.
3. To remove the guard, remove battery pack and
place it upside down on a level surface. Remove
any accessories from spindle.
Press in the guard adjustment lock lever and rotate
the guard to line up the tabs with the slots. Then
lift the guard straight up and away from the tool.
