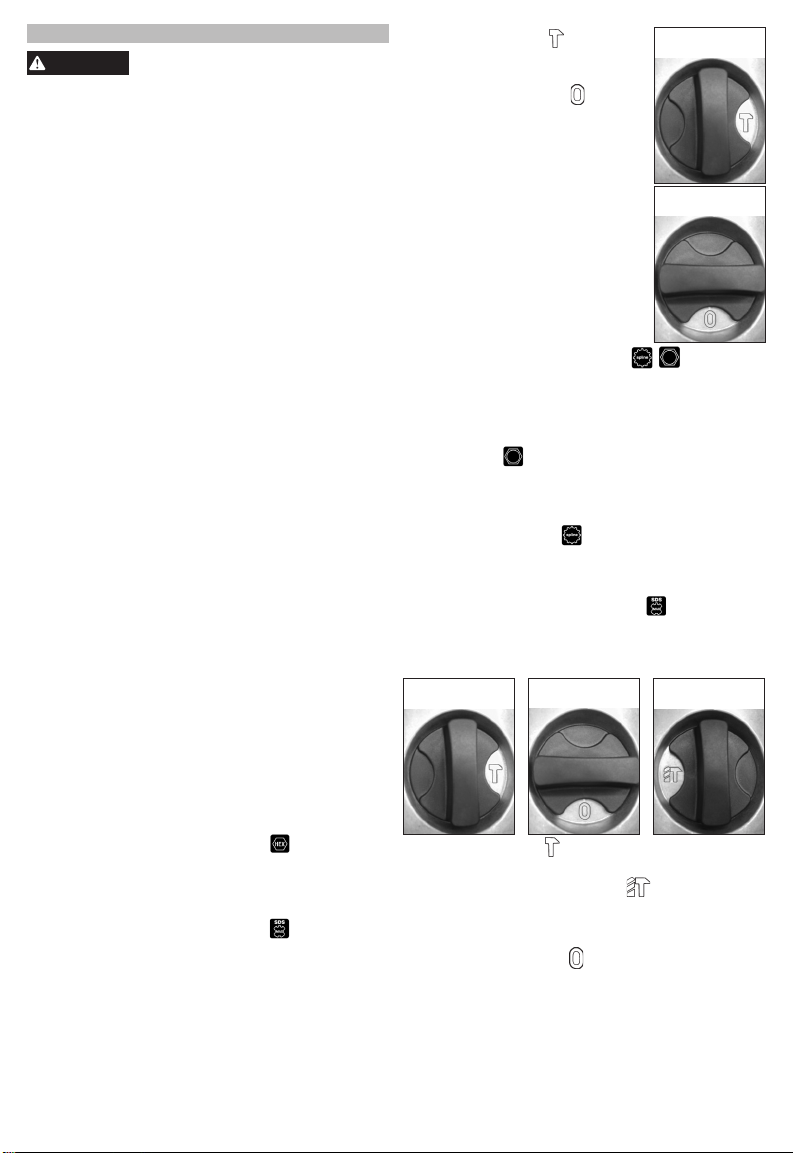

OPERATION

WARNING

To reduce the risk of injury, always

unplug tool before attaching or

removing accessories or making adjustments.

Use only specically recommended accessories.

Others may be hazardous.

Always wear proper eye protection marked to

comply with ANSI Z87.1.

When working in dusty situations, wear appro-

priate respiratory protection or use an OSHA

compliant dust extraction solution.

Keep hands and cord away from the bit and all

moving parts.

Always use a side handle when using this tool.

Always brace or hold securely.

Cut embedded rebar only if this operation does

not a󰀨ect the integrity of the building. If in doubt,

consult a structural engineer. Tool operator fully

responsible for adverse structural e󰀨ects.

Electronic Feedback Control Circuit

These hammers have an Electronic Feedback Con-

trol Circuit (EFCC) which helps improve the operation

and life of the tool.

Feedback Control

The electronic speed control circuit allows the tool to

maintain constant speed and torque between no-load

and load conditions.

Soft Start

The Soft-Start feature reduces the amount of torque

reaction to the tool and the user. This feature gradu-

ally increases the motor speed up from zero to the

speed set by the speed control dial.

Selecting Speed

The speed control dial on these hammers allows

the user to adjust the rotating speed (RPM) and the

impact rate (BPM) of the tool.

To change the speed, set the speed control dial to

the desired setting.

• Lower speeds provide more control when starting

holes and reduce 'spalling' on breakthrough. Spall-

ing occurs when pieces of material chip o󰀨 around

the drilled hole on breakthrough. When chiseling in

soft or brittle materials, use lower speeds to reduce

damage to surrounding areas of the material.

• Higher speeds provide faster penetration when

drilling and chiseling in demolition work.

Selecting Action

Cat. No. 5337-20

The cat. no. 5337-20 demolition hammer is for

"hammering-only". No rotation is available. Only

chisels and other "hammering-only" accessories

should be used.

Cat. No. 5339-20

The cat. no. 5339-20 demolition ham-mer is for

"hammering-only". No rotation is available. The ac-

tion selector is used to select the action:

1. Hammering only. For use with

Hammering

Only

"hammering only" accessories.

Use this setting for chiseling.

2. Chisel adjustment. Use this

setting to adjust the angle of the

chisel blade in relation to the tool.

With a chisel mounted in the tool,

twist the chisel to the desired

angle. Then, rotate the action

selector to the "hammering only"

setting for use.

NOTE: To engage the hammering

Chisel

Adjustment

mechanism, maintain pressure on

the bit/chisel. When pressure is

released, hammering stops.

Cat. No. 5340-20

The cat. no. 5340-20 rotary hammer has "hammer-

ing-only" and "hammering with rotation", depending

on the type of shank inserted into the tool.

For "hammering-only": Insert a chisel or other

"hammering-only" accessory with a 3/4" Hex with

21/32" Round shank into the nose of the tool (see

"Inserting Bits and Chisels"). The rotational drive

mechanism will run but not engage with the chisel,

resulting in "hammering-only" action.

For "hammering with rotation": Insert a drill or

coring bit with a spline shank into the nose of the

tool (see "Inserting Bits and Chisels"). The rotational

drive mechanism engages with the bit, resulting in

"hammering with rotation" action.

Cat. No. 5342-20

Cat. no. 5342-20 rotary hammer has "hammering-

only", "hammering with rotation", and "chisel adjust-

ment" settings. The action selector is used to select

the action:

Hammering

Only

Chisel

Adjustment

Hammering

with Rotation

1. Hammering only. For use with "hammering only"

accessories. Use this setting for chiseling.

2. Hammering with rotation. Use this setting

for drilling holes with drill bits. Do not use "ham-

mering with rotation" when using chisels or other

"hammering-only" accessories.

3. Chisel adjustment. Use this setting to adjust

the angle of the chisel blade in relation to the tool.

With a chisel mounted in the tool, twist the chisel to

the desired angle. Then, rotate the action selector

to the Hammering only setting for use.

NOTE: To engage the hammering mechanism,

maintain pressure on the bit/chisel. When pressure

is released, hammering stops.
